SUBARU BRZ (ZD8) Engine Oil Cooler Kit
Click for details on size, pricing, and more. (PDF)
Thread Specs: M20 × P1.5
Fitment: ZD8 (FA24 Engine)

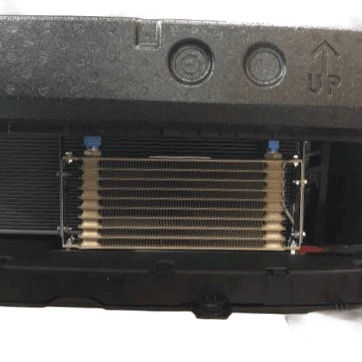

1. Drawn-Cup Type Kit
Part Number: HPOC-ZD8
Price: 75,000JPY
Features our original offset-fin design inside the core tubes, ensuring stable oil temperatures through superior cooling efficiency and minimal pressure loss.
Core Specs (13-Row): L300 × H182 × W50mm / Capacity: 0.7L / Weight: 1.16kg
Kit Contents:
Oil Attachment (Built-in wax-type thermostat, fully open at 82°C)
Pre-assembled Custom Hose & Fitting Set
Dedicated Brackets, Bolts, and Nuts
Note: A separate oil filter (Equivalent to V9111-0107) is required.
2. Side-Tank Type Kit (Micro-Pitch Fin)
Part Number: HPOCE-ZD8W3
Price: 100,000JPY
A sandwich-type kit featuring our "W3" Side-Tank core with high-density micro-pitch fins.
This kit is designed for a completely bolt-on installation with no body modifications required.
The core is mounted in the front-center of the radiator for maximum exposure to airflow.
Core Specs (W3): L500 × H150 × W50mm / Capacity: 0.85L / Weight: 3.04kg
Kit Contents:
Oil Attachment (Built-in wax-type thermostat, fully open at 82°C)
Sandwich-specific Spacer
Pre-assembled Custom Hose & Fitting Set
Adjustable Banjo, AN10 Union, Plug Union
Dedicated Brackets, Bolts, and Nuts
Note: A separate oil filter (Equivalent to V9111-0107) is required.
